| 硬件規格 | |
| 端口 |

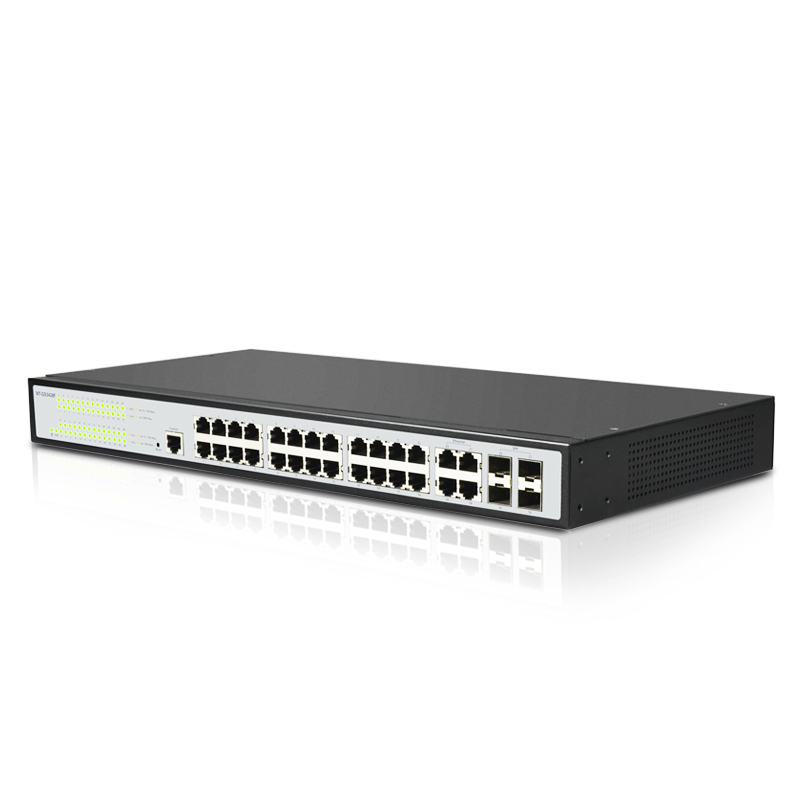

24個10/100/1000M自適應端口 4個10/100/1000M Combo端口 |
| LED指示燈 | Power, Link/Act,1000Mbps |
| 尺寸(L*W*H) | 440 mm * 315 mm * 44 mm |
| 工作環境 |
工作溫度: 0℃~40℃ 存儲溫度: -40℃~70℃ 工作濕度: 10%~90% 無凝結 存儲濕度: 5%~90% 無凝結 |
| 整機電源 | ≤24W |
| 支持標準 |
IEEE 802.3, 802.3u, 802.3x, 802.3af，802.3at CSMA/CD, TCP/IP |
| 基本功能 |
線速轉發 MAC自動學習與老化 IEEE802.3X全雙工流控與Backpressure半雙工流控 |
| 背板帶寬 | 52Gbps |
| MAC地址列表 | 8k |
| 轉發速率 |
10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port |
| 轉發方式 | 存儲轉發 |
| 軟件規格 | |
| VLAN |
Port base VLAN ACCESS VLAN TRUNK VLAN HYBRID VLAN 802.1Q tagged VLAN Max. 4094 VLAN |
| IGMP Snooping |
IGMP v1/v2 Snooping Support 256 groups |
| MAC address administration |
MAC address display/inquire Static MAC settings Dynamic MAC address administration MAC address filtering |
| Loop detection | Support loop detection |
| storm control | Broadcast/Multicast/Unknown Unicast Storm Control |
| Link Aggregation |
maximum 8 port per group, support 16 group LACP dynamic or static aggregation |
| Access control |
Based on MAC source, destination MAC, MAC source and destination MAC, MAC protocol, source IP access control. Based on the TCP, IP, UDP, IGMP source IP, destination IP, source IP and destination IP access control |
| Security feature |
VLAN port isolation Port +MAC+IP binding |
| Port Mirroring |
- One-to-one - Many-to-one -By mirroring port transmission, receiving and sending and receiving data |
| network management |
Telnet CLI WEB (IP:192.168.1.200 ,username/password: admin/admin) |
| Port speed limit | Egress and ingress speed limit |
| DHCPSNOOPING | Prevent illegal DHCP server |
| Loop detection | Detection of Ethernet loop |
| ARP attack prevention |
To prevent the ARP request deception To prevent the ARP reply to cheat |
| Jumbo Frames | 10K |
| SNMP |
SNMP v2c;conform to RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907 The MIB II;conform to RFC1213 Ethernet MIB;conform to RFC1643 The bridge MIB;conform to RFC1493 |
| RMON | Support group 1, 2, 3, 9 |
| Equipment management |
Console Telnet The CLI interface WEB UI Support the ping Check the CPU and memory utilization one key to collect fault |
