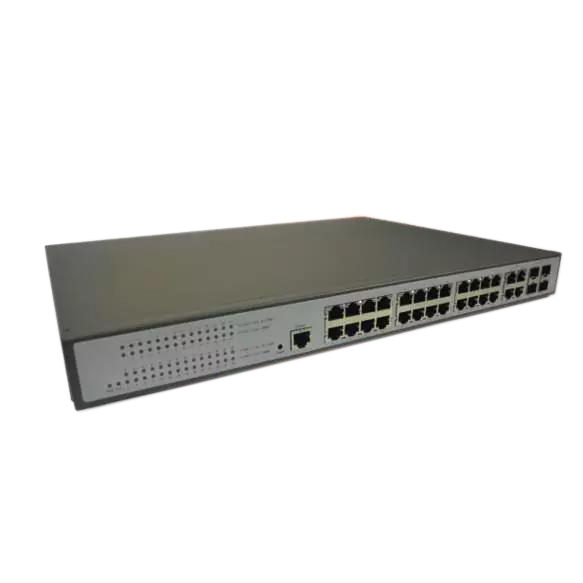

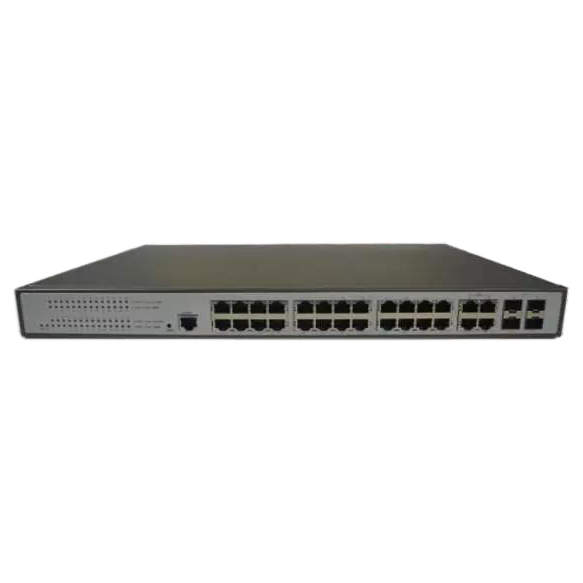

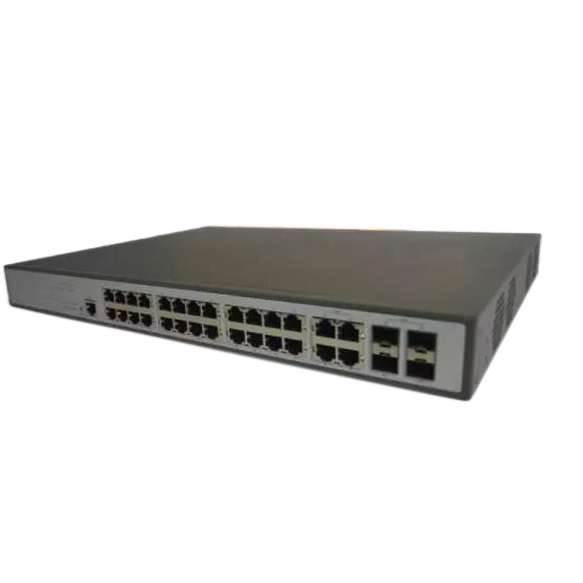

型號:MT-GS3428F-POE

品名:28口全千兆管理型POE交換機


在線詢價
硬件規格
端口 24個10/100/1000M自適應端口,支持PoE功能
4個10/100/1000M Combo端口
LED指示燈 Power, Link/Act,1000Mbps,POE
尺寸(L*W*H) 440 mm * 315 mm * 44 mm
工作環境 工作溫度: 0℃~40℃
存儲溫度: -40℃~70℃
工作濕度: 10%~90% 無凝結
存儲濕度: 5%~90% 無凝結
整機電源 450W
POE電源 425W
軟件規格
支持標準 IEEE 802.3, 802.3u, 802.3x, 802.3af,802.3at
CSMA/CD, TCP/IP
基本功能 兼容符合IEEE 802.3af/802.3at標準的受電設備(PD)
端口供電優先級功能
線速轉發
MAC自動學習與老化
IEEE802.3X全雙工流控與Backpressure半雙工流控
背板帶寬 52Gbps
MAC地址列表 8k
轉發速率 10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
轉發方式 存儲轉發
軟件規格
VLAN Port base VLAN
ACCESS VLAN
TRUNK VLAN
HYBRID VLAN
802.1Q tagged VLAN
Max. 4094 VLAN
IGMP Snooping IGMP v1/v2 Snooping
Support 256 groups
MAC address administration MAC address display/inquire
Static MAC settings
Dynamic MAC address administration
MAC address filtering
Loop detection Support loop detection
storm control Broadcast/Multicast/Unknown Unicast Storm Control
Link Aggregation maximum 8 port per group, support 16 group
LACP dynamic or static aggregation
Access control Based on MAC source, destination MAC, MAC source and destination MAC, MAC protocol, source IP access control.
Based on the TCP, IP, UDP, IGMP source IP, destination IP, source IP and destination IP access control
Security feature VLAN port isolation
Port +MAC+IP binding
Port Mirroring - One-to-one
- Many-to-one
-By mirroring port transmission, receiving and sending and receiving data
network management Telnet
CLI
WEB (IP:192.168.1.200 ,username/password: admin/admin)
Port speed limit Egress and ingress speed limit
DHCPSNOOPING Prevent illegal DHCP server
Loop detection Detection of Ethernet loop
ARP attack prevention To prevent the ARP request deception
To prevent the ARP reply to cheat
Jumbo Frames 10K
SNMP SNMP v2c;conform to RFC1902, RFC1903, RFC1904, RFC1905,
RFC1906, RFC1907
The MIB II;conform to RFC1213
Ethernet MIB;conform to RFC1643
The bridge MIB;conform to RFC1493
RMON Support group 1, 2, 3, 9
Equipment management Console
Telnet
The CLI interface
WEB UI
Support the ping
Check the CPU and memory utilization
one key to collect fault
